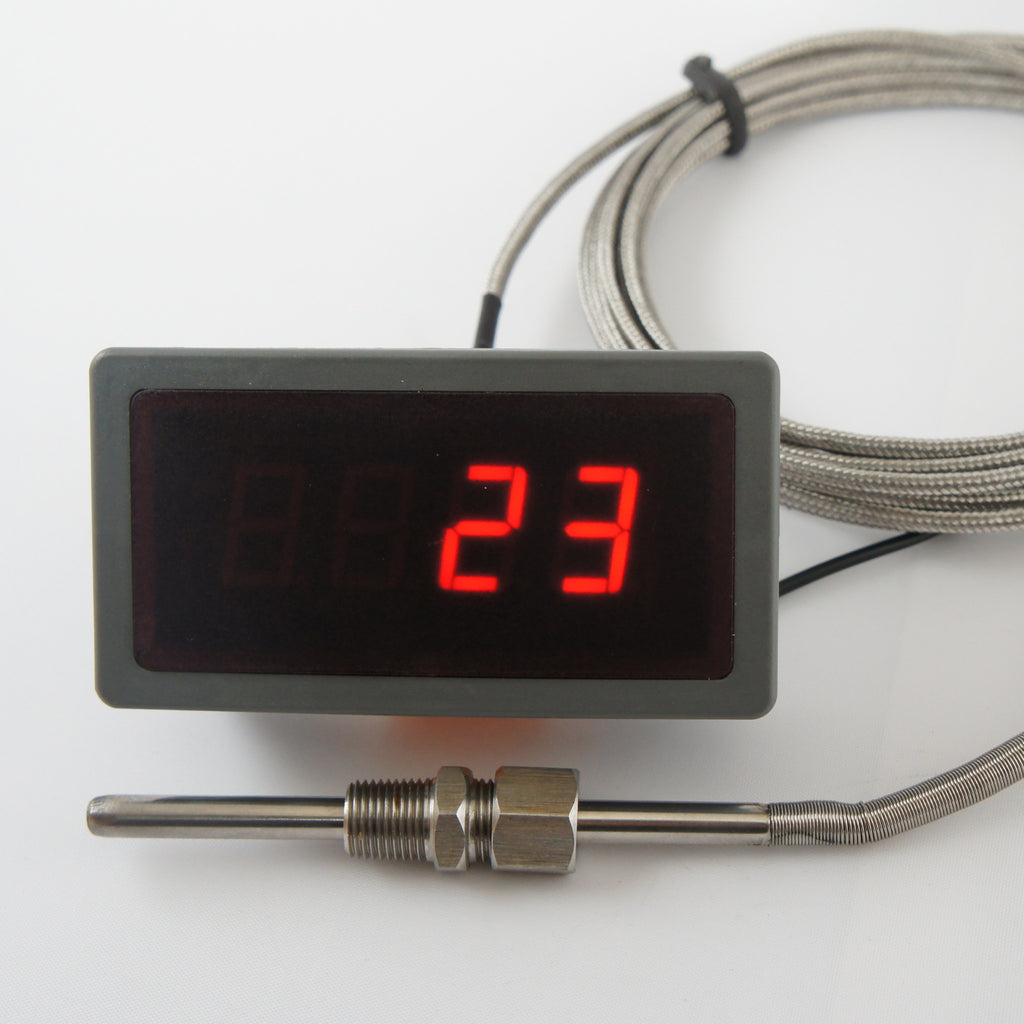

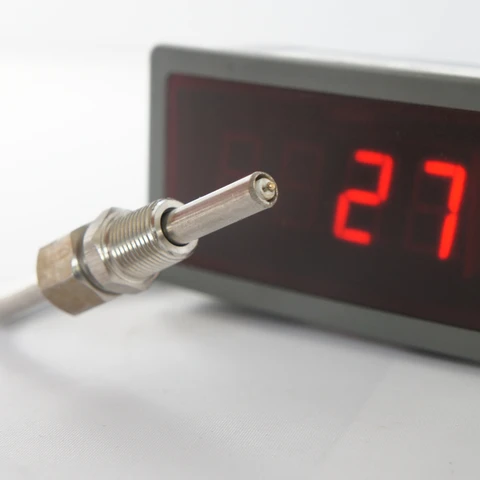

Exhaust Gas Temperature Gauge Kit.
This exhaust gas temperature gauge (EGT) is used to monitor your vehicles exhaust gas temperature.
Monitoring the EGT gives the driver early indication if the engine is overheating or over/under fuelling, which could result in engine failure and costly repairs. Fitting and using an EGT gauge is an inexpensive way to safeguard your Petrol or diesel engine from expensive repairs due to excessive exhaust gas temperatures.
Universal EGT Kit.
This universal egt kit is suitable for turbo & non turbo engines including popular Sports/Performance Cars, 4WD, Boats, Planes, Trucks. The probe is one of the best available and will read and display temperature with great accuracy +/- 1%. Temperatures up to 1250 C.Our EGT gauge kits come with a 1/4” NPT type K thermocouple EGT probe that can be installed to either your exhaust manifold or exhaust pipe also comes with weld on bung for easier installation.
The temperature measurement is cold junction compensated for high accuracy. Very few EGT gauges on the market have the cold junction compensation circuit. Most of them cost several times more than this gauge.
Gauge reads in Celsius or Fahrenheit.
Kit includes: Gauge, Sensor Cable with 1/8" NPT fitting & Weld Bung.

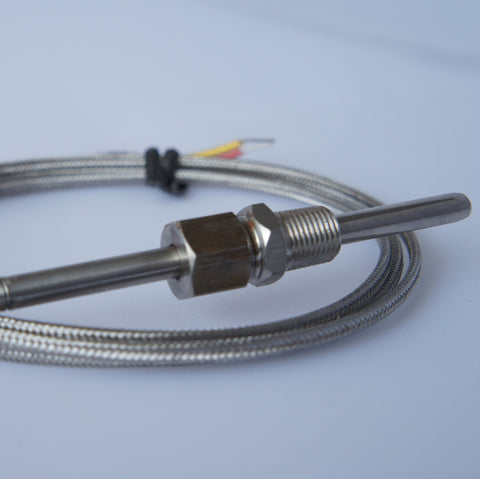

Probe Material : High quality Stainless Steel with Platinum elements.
Probe Diameter : 5mm (0.2”)
Probe Length : L1 80mm (3.15”)
Threads : 1/4” NPT Adjustable Compression Fittings
Cable Lengths : 3/5/8/10 Meters

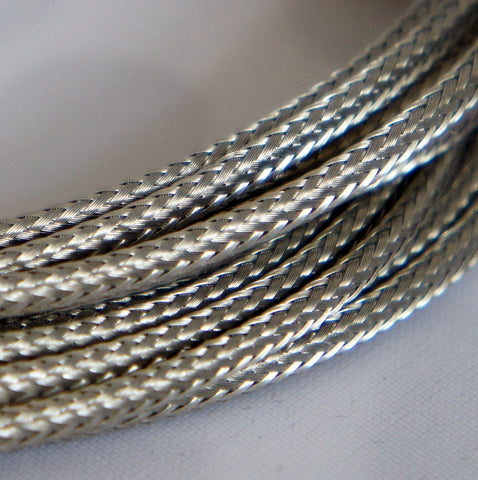

Cable Insulation : Fiberglass braiding with stainless steel overbraiding
Type : Ungrounded
Temperature Range : -100 ~ 1250 degree Celsius

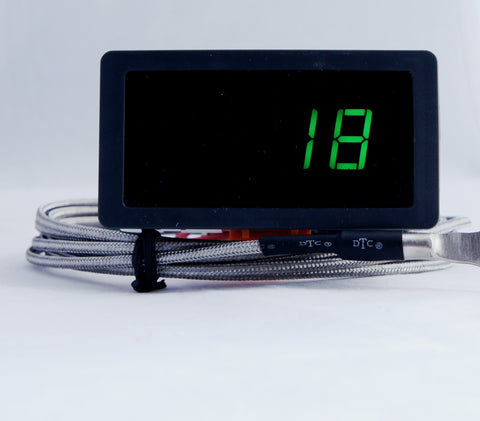

EGT Gauge :
Display Range : 0 ~ 1300 Celsius or 2372 Fahrenheit
Display Type : 3 1/2 LED (Red/Blue)
Dimensions : 79W x 43H x 25D mm (3.1" x 1.7" x 1")
Accuracy : +/- 1%
Power : 12V DC

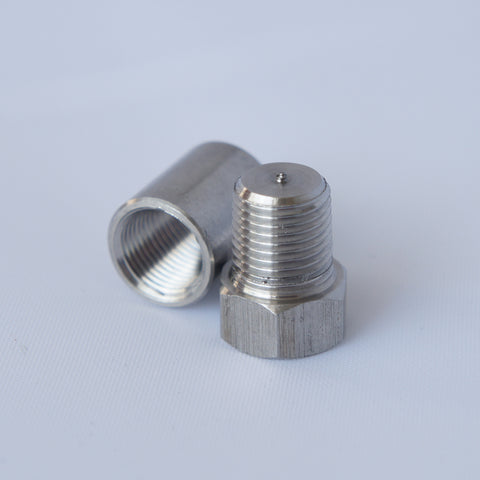

Stainless Female Weld Bung with Male Plug:
Material : Stainless Steel
Threads : 1/4” NPT
INSTALL GUIDELINES INCLUDED.
